Fabricated Pipe Suction Screen
Project Summary
Pump suction screens are the first line of defense protecting expensive pumping equipment from damage. These seemingly simple components perform a critical function—they filter out debris, rocks, and large particles that would otherwise enter the pump and cause catastrophic damage to impellers, seals, and bearings that cost thousands to replace. When Pump and Abrasion Technologies needed custom suction screens fabricated to their specifications, the work required precision manufacturing that would ensure proper fit, appropriate filtration, and long-term reliability in demanding pumping applications where failures cause expensive downtime.
The screens we fabricated follow customer-provided drawings exactly. Not approximately. Exactly. This ensures they integrate properly with existing pumping systems without modification or adaptation. The precision required goes beyond typical fabrication tolerances—these components need to fit precisely, seal properly, and provide the specified filtration without restricting flow excessively in ways that would reduce pump efficiency. Every dimension matters when components need to work reliably in critical pumping systems where performance affects operations.
Precision Manufacturing to Specification
Working from customer drawings requires disciplined fabrication practices where deviation isn’t acceptable. The drawings specify exact dimensions, materials, mesh specifications, and construction methods that have been engineered for the specific application. Our role was to translate those specifications into physical components that meet every requirement without improvisation. We verified dimensions throughout manufacturing, ensuring the finished screens matched the drawings precisely—not close enough, but exact.
The screen mesh installation required particular attention because mesh performance is critical. The mesh type and size are specified to provide appropriate filtration for the application—too coarse and damaging particles pass through, too fine and flow is restricted excessively causing pump cavitation. We installed the specified mesh with proper support structure to maintain its integrity under the pressures and flows it will experience in service without sagging or deforming.
The pipe body fabrication, end connections, and mounting provisions all followed the customer’s specifications exactly without deviation. These aren’t areas where we improvise or make improvements based on our preferences—the customer has engineered these screens for their specific application, and our job is to manufacture them precisely as specified without substitutions or modifications.
Quality Construction for Reliable Service
The welding throughout meets AS/NZS 1554 standards. Structural integrity. Long-term reliability. The materials are corrosion-resistant as specified, appropriate for the fluids and conditions the screens will encounter—whether fresh water, salt water, or fluids containing chemicals. The construction quality ensures the screens will perform their protective function reliably throughout their service life without premature failures.
Suction screens operate in demanding conditions. They’re submerged in fluids that may contain abrasive particles. They experience continuous flow forces. They need to maintain their integrity despite these stresses. The quality construction we provided ensures the screens will withstand these conditions while continuing to protect the pumping equipment they serve—protection that prevents expensive pump failures.
This project demonstrates our capability to manufacture precision components to customer specifications without deviation, delivering quality fabrication that meets exact requirements for critical pumping system applications where precision matters and failures are expensive.
Project Gallery

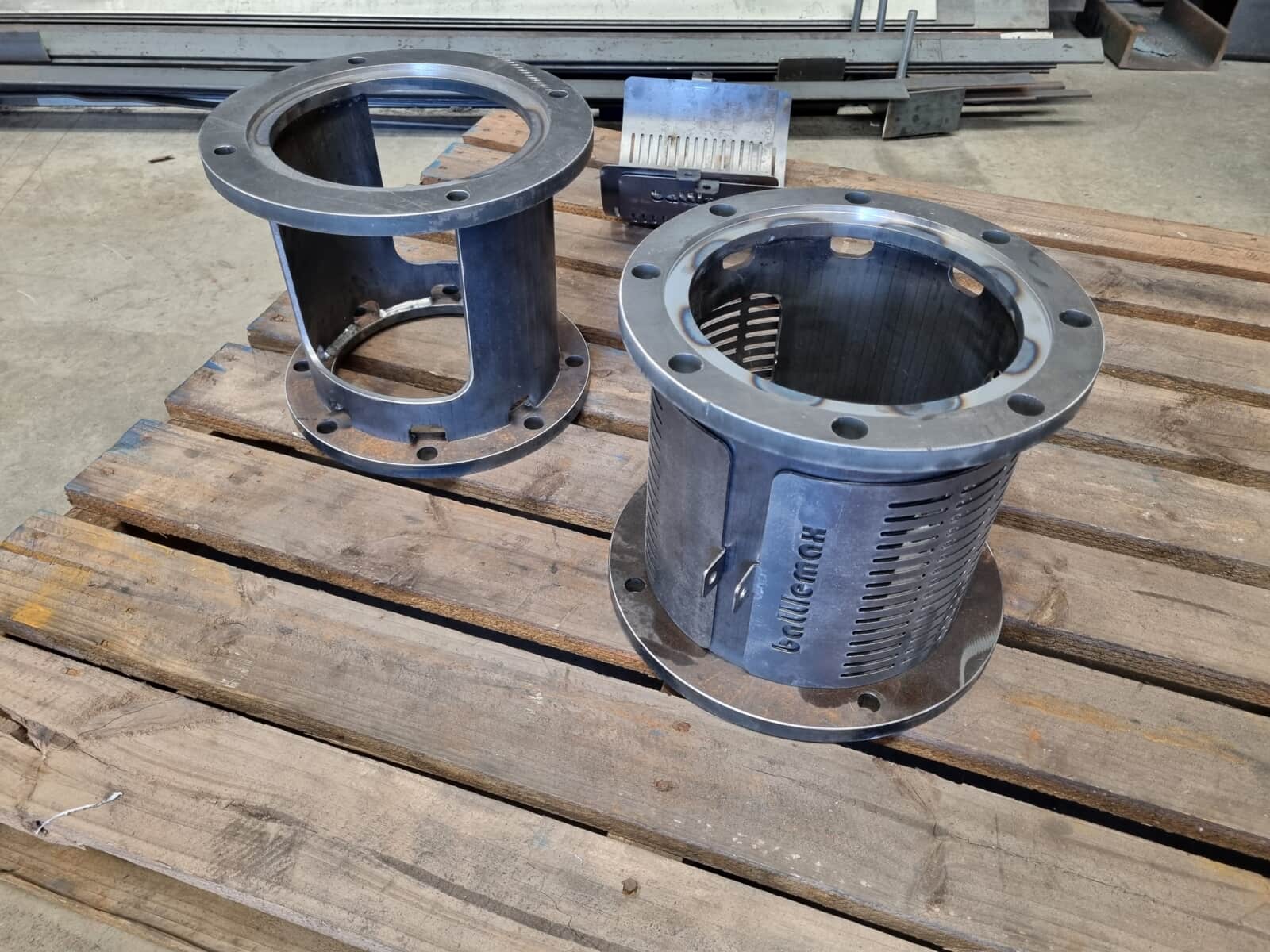

Complete fabricated pipe suction screen
Pipe suction screen showing mesh and construction detail
Project Details
- Location
- Perth, Western Australia, Australia
- Sector
- Pumping Systems / Mining / Water Treatment
- Status
- Completed
- Project Value
- $
- Completion Date
- October 2025
- Standards
- AS/NZS 1554 - Welding standards Customer specifications Material specifications
