Project Summary

Elite Engineering WA fabricated a large rubber lined discharge spool for a mining pump system in Western Australia. This heavy-duty pipe spool provides critical discharge capability for mining pump operations, with rubber lining protecting the steel construction from abrasive slurries and corrosive materials commonly encountered in mining applications.

The discharge spool was engineered to withstand the demanding conditions of mining pump discharge, where high-pressure slurry flow creates significant wear on unprotected steel surfaces. The rubber lining extends service life by providing a durable, abrasion-resistant barrier between the conveyed material and the steel pipe wall. All fabrication work was performed to AS 3992 standards for metallic pipe and tubular products, ensuring compliance with Australian pipe fabrication requirements.

This project demonstrates our capability in pipe fabrication for mining applications, where material selection, wear protection, and structural integrity directly impact operational reliability and maintenance costs.

Project Context

The mining client required a custom discharge spool for a large mining pump system. Mining pump discharge applications present unique challenges due to the abrasive nature of slurries, high flow velocities, and continuous operation requirements. Unprotected steel pipe spools in these applications experience rapid wear, leading to frequent replacements, operational downtime, and increased maintenance costs.

The client’s requirements included:

Wear resistance: Rubber lining to protect the steel construction from abrasive slurry wear
Structural integrity: Heavy-duty steel construction capable of withstanding high-pressure pump discharge
Dimensional accuracy: Precise fabrication to ensure proper integration with existing pump and piping systems
Compliance: Fabrication to AS 3992 standards for metallic pipe and tubular products
Durability: Long service life in continuous mining pump operations

Standard pipe spools without rubber lining would experience accelerated wear in mining pump discharge applications, requiring frequent replacement and creating operational disruptions. The rubber lined discharge spool addresses these challenges by combining structural steel strength with abrasion-resistant rubber protection.

Design Requirements

The rubber lined discharge spool design addressed several critical technical requirements:

Wear Protection: The internal rubber lining provides a durable, abrasion-resistant barrier that protects the steel pipe wall from the erosive effects of high-velocity slurry flow. Rubber lining is particularly effective in mining applications where conveyed materials include abrasive particles, sharp edges, and corrosive chemicals.

Structural Performance: The steel construction must withstand high-pressure pump discharge conditions while maintaining dimensional stability. Heavy-duty steel sections were selected for their strength and ability to support the rubber lining system without deformation under operational loads.

Flow Characteristics: The spool geometry was designed to promote smooth material flow and minimise turbulence, reducing wear patterns and pressure drop across the discharge section. The internal rubber lining provides a smooth surface that promotes efficient slurry transport.

Integration Compatibility: The discharge spool dimensions, flange ratings, and connection types were engineered to integrate seamlessly with the existing mining pump and piping system. Precise fabrication ensures proper alignment and sealing at connection points.

Compliance: All fabrication work was performed to AS 3992 (Metallic Pipe and Tubular Products), ensuring the spool meets Australian standards for pipe fabrication quality, dimensional tolerances, and material requirements.

Solution

Our pipe fabrication team engineered and manufactured a custom rubber lined discharge spool tailored to the mining client’s specific pump system requirements. The solution incorporated:

Heavy-duty steel construction using materials selected for strength and compatibility with rubber lining systems
Rubber lined internal surface providing abrasion resistance and extending service life in slurry service
Precision fabrication to AS 3992 standards ensuring dimensional accuracy and proper system integration
Optimised spool geometry promoting smooth material flow and minimising wear patterns
Proper flange and connection design ensuring compatibility with existing pump and piping systems
Quality welding performed by certified welders with current procedure qualifications

The discharge spool was fabricated in our Forrestdale workshop using our professional welding services, with all welding performed to AS 3992 requirements. The steel construction was completed and inspected before rubber lining application, ensuring the base material met all structural requirements.

Technical Specifications

The rubber lined discharge spool was fabricated using heavy-duty steel construction with rubber lining applied to internal surfaces. Key technical features include:

Material: Heavy-duty steel construction (grade selected for strength and rubber lining compatibility)
Fabrication Standard: AS 3992 (Metallic Pipe and Tubular Products)
Lining: Rubber lined internal surface for abrasion resistance
Application: Mining pump discharge system
Diameter: Large diameter spool sized for pump discharge requirements
Pressure Rating: Designed for high-pressure pump discharge conditions
Connection Type: Flanged connections for system integration

All steel fabrication and welding was performed by qualified welders with current procedure qualifications. The steel construction was completed, inspected, and verified for dimensional accuracy before rubber lining application. Material traceability was maintained throughout fabrication.

Manufacturing Process

The rubber lined discharge spool was manufactured in our Forrestdale workshop through the following process:

1. Design & Engineering: Our team developed detailed fabrication drawings based on the client’s pump system specifications and discharge requirements. The design optimised structural performance, flow characteristics, and rubber lining compatibility.

2. Material Procurement: Heavy-duty steel plate and pipe sections were sourced from certified suppliers, with material test certificates (MTC) provided for traceability. Material selection balanced strength, weldability, and compatibility with rubber lining systems.

3. Cutting & Preparation: Steel components were cut to size using appropriate methods that preserve material properties. Joint preparations were completed for full-penetration welding at critical connections. Edge preparations were completed to ensure proper rubber lining adhesion.

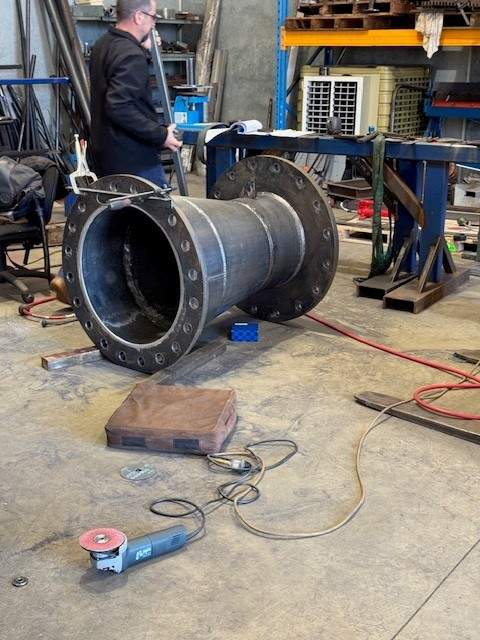

4. Fabrication & Assembly: The discharge spool was fitted and welded in our workshop, with all structural welding performed to AS 3992 by certified welders. The spool geometry was verified for dimensional accuracy and flow characteristics.

5. Quality Control: Dimensional inspection verified the spool met design tolerances for system integration. Weld quality was assessed visually and against AS 3992 criteria, with welding procedure and welder qualification records compiled for the project documentation pack. Internal surfaces were inspected to ensure proper preparation for rubber lining application.

6. Surface Preparation: Internal steel surfaces were prepared for rubber lining application, including cleaning, profiling, and inspection to ensure proper adhesion of the rubber lining system.

7. Rubber Lining Application: Rubber lining was applied to internal surfaces by qualified applicators, providing a durable, abrasion-resistant barrier for slurry service. The lining system was selected based on the specific abrasive and chemical conditions of the mining application.

8. Final Inspection: The completed rubber lined discharge spool was inspected for dimensional accuracy, rubber lining quality, and overall workmanship before delivery.

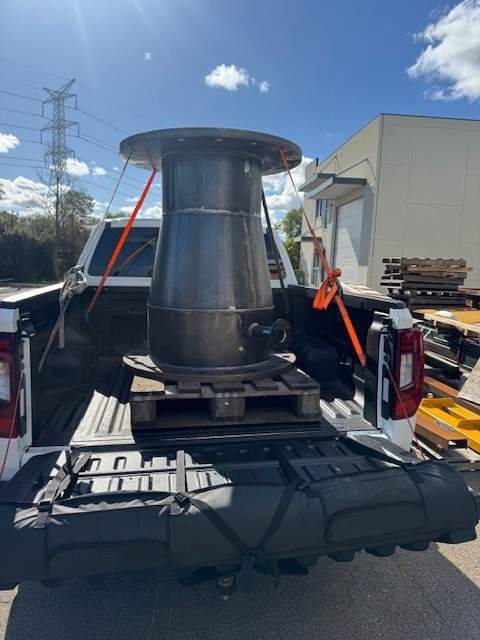

9. Delivery: The completed discharge spool was transported to the mining client’s site, ready for installation in the pump discharge system.

Standards Compliance

This project was fabricated in full compliance with Australian pipe fabrication standards:

AS 3992 - Metallic Pipe and Tubular Products: All fabrication work performed to this standard, ensuring compliance with Australian requirements for pipe fabrication quality, dimensional tolerances, and material requirements
Material Traceability: Steel materials sourced with material test certificates (MTC) for grade verification and traceability

Complete documentation was provided to the client, including welding procedure specifications (WPS), welder qualification records (WQR), material test certificates, and dimensional inspection reports.

Project Benefits

The custom rubber lined discharge spool delivered several operational advantages for the mining client:

Extended Service Life: Rubber lining provides superior abrasion resistance compared to unprotected steel, significantly extending the discharge spool’s service life in slurry service. This reduces replacement frequency and associated maintenance costs.

Reduced Downtime: Longer service intervals between spool replacements minimise operational downtime, supporting continuous mining pump operations and production targets.

Wear Protection: Rubber lining protects the steel construction from abrasive slurry wear, maintaining structural integrity and preventing premature failure in high-wear applications.

Improved Flow: Smooth rubber lined internal surfaces promote efficient slurry transport, reducing pressure drop and turbulence across the discharge section.

Compliance & Quality: Full AS 3992 compliant fabrication provides assurance of quality and dimensional accuracy, supporting the client’s quality and compliance requirements for mining equipment.

Cost Efficiency: While rubber lined spools have higher initial cost than unprotected steel, the extended service life and reduced maintenance requirements provide superior total cost of ownership in abrasive slurry applications.

Applications

Rubber lined discharge spools and similar pipe fabrication work are used across various mining and industrial applications:

Mining Pump Discharge: Rubber lined spools for slurry pump discharge systems in mineral processing operations
Tailings pipelines: Wear-resistant pipe spools for tailings transport and disposal systems
Mineral Processing: Rubber lined pipes and spools for ore processing, screening, and conveying systems
Coal Handling: Abrasion-resistant pipe spools for coal preparation and transport systems
Sand & Gravel Operations: Rubber lined discharge pipes for sand and gravel processing plants
Chemical Processing: Corrosion and abrasion resistant pipe spools for chemical handling applications
Power Generation: Wear-resistant pipes for ash handling and fuel systems in power stations
Dredging Operations: Rubber lined discharge pipes for dredge slurry transport

Elite Engineering WA fabricates custom rubber lined pipe spools, discharge pipes, and wear-resistant piping systems for mining and industrial applications across Western Australia. Our AS 3992 compliant pipe fabrication and custom fabrication capabilities ensure all equipment meets Australian standards for quality, dimensional accuracy, and structural integrity in demanding mining applications.
