Stainless Steel Clam Shell Valve Cage Fabrication Perth

Stainless Steel Clam Shell Valve Cage Fabrication

Elite Engineering WA designed and fabricated a custom stainless steel clam shell valve cage for an industrial client in Perth. This protective enclosure features an innovative split-opening design that provides full access to the valve internals while maintaining a fully enclosed safety guard when closed.

The cage was constructed from welded stainless steel SHS (Square Hollow Section) framing with mesh infill panels, creating a robust protective barrier that restricts unauthorised access to valve components while allowing straightforward opening for maintenance and inspection. The clam shell configuration eliminates the need to remove the entire cage for valve access, significantly reducing maintenance time and complexity.

Project Context

The client required a protective enclosure for industrial valves operating in demanding process environments. Traditional valve cages either provided inadequate protection or required complete removal for valve maintenance, creating safety risks and operational delays.

The client needed a solution that would:

• Provide full enclosure protection against unauthorised access and accidental contact
• Allow quick and easy access for routine maintenance and inspection
• Resist corrosion in the industrial environment
• Provide visibility of valve status without opening the cage
• Meet safety standards for industrial valve protection

Standard off-the-shelf valve cages didn’t meet the specific access requirements, so a custom solution was required that balanced protection, accessibility, and durability.

Design Requirements

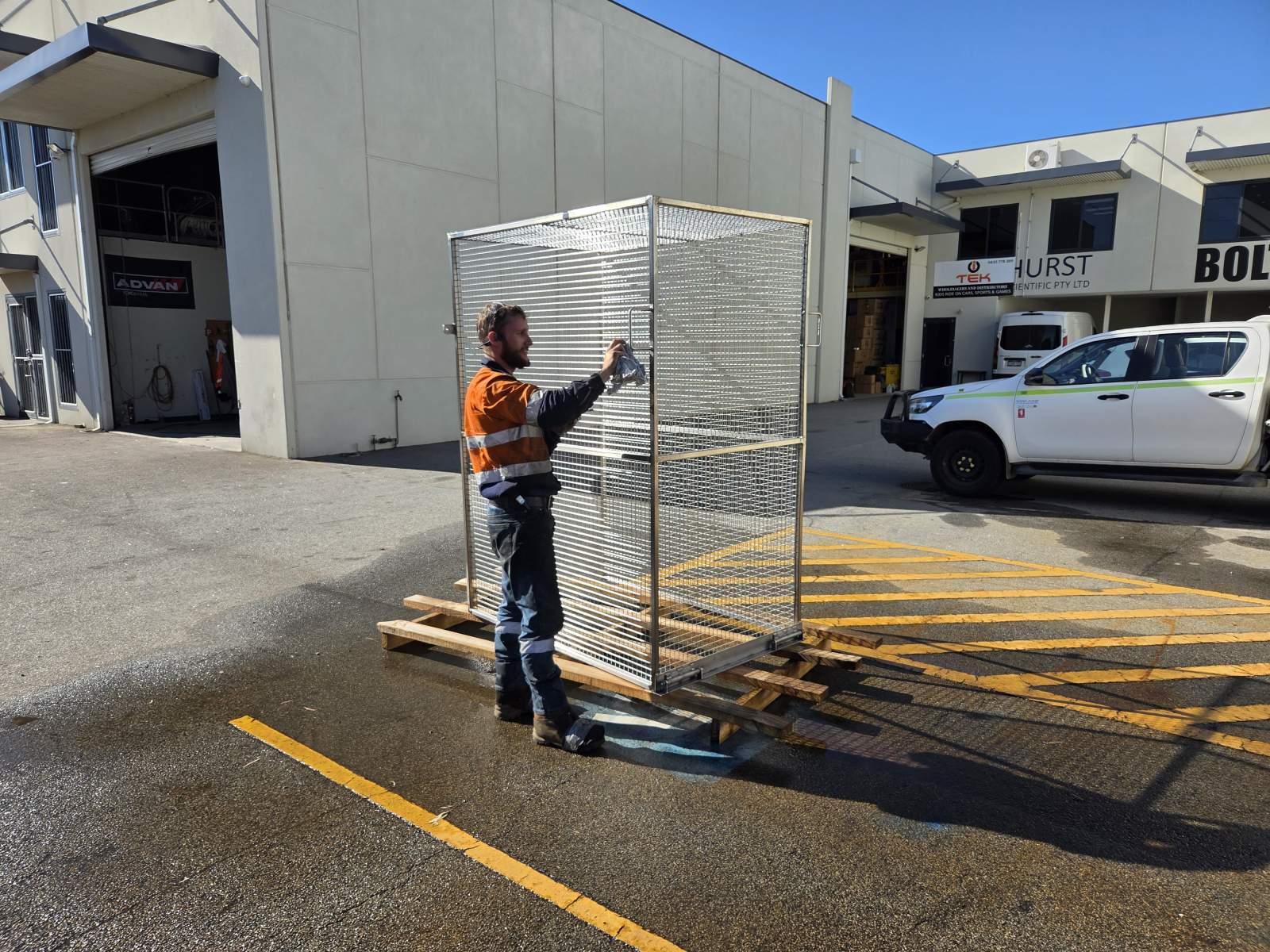

Clam Shell Opening Mechanism: The cage needed to split open along a horizontal plane, allowing the top half to lift clear while the bottom half remained in position. This design provides full access to the valve body and actuator without requiring the cage to be moved or disconnected from the pipeline.

Structural Integrity: Despite the split-opening design, the cage needed to maintain structural rigidity in both open and closed positions. The framing had to support the weight of the mesh panels and resist deformation during operation.

Mesh Infill: The cage required mesh infill panels that provided visibility of the valve position while preventing access to moving parts. The mesh needed to be securely welded to the frame without creating sharp edges or protrusions.

Hinge and Latch System: Heavy-duty hinges were required to support the weight of the opening cage sections, with a secure latching mechanism to hold the cage in both open and closed positions. The latch needed to be simple to operate but secure against accidental opening.

Corrosion Resistance: The industrial environment required stainless steel construction to resist corrosion and maintain appearance over the service life. All welding had to maintain the corrosion resistance of the base material.

Valve Clearance: The cage needed to accommodate the specific valve dimensions with adequate clearance for insulation, actuator movement, and maintenance tool access.

Solution

Our custom fabrication team designed the clam shell valve cage with a horizontal split line positioned to provide optimal access to the valve body and actuator. The cage frame was constructed from 40x40x3mm 316 stainless steel SHS, welded to form two half-cage sections that mate along the split line.

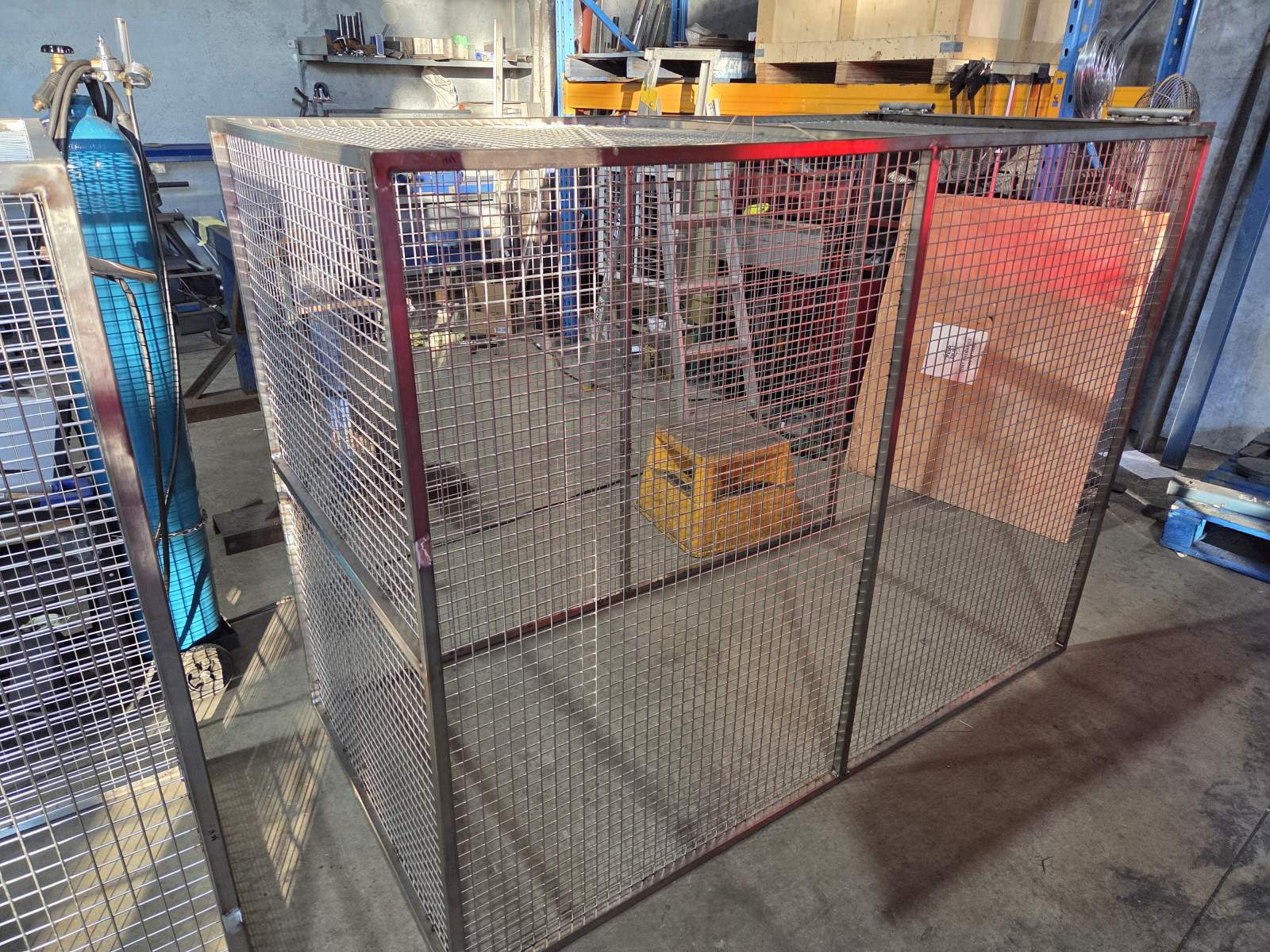

The bottom half of the cage is fixed to the base structure, providing a stable platform for the valve. The top half is hinged at the rear, allowing it to lift upward and backward to provide full access to the valve internals. Heavy-duty stainless steel hinges support the weight of the opening section while maintaining smooth operation.

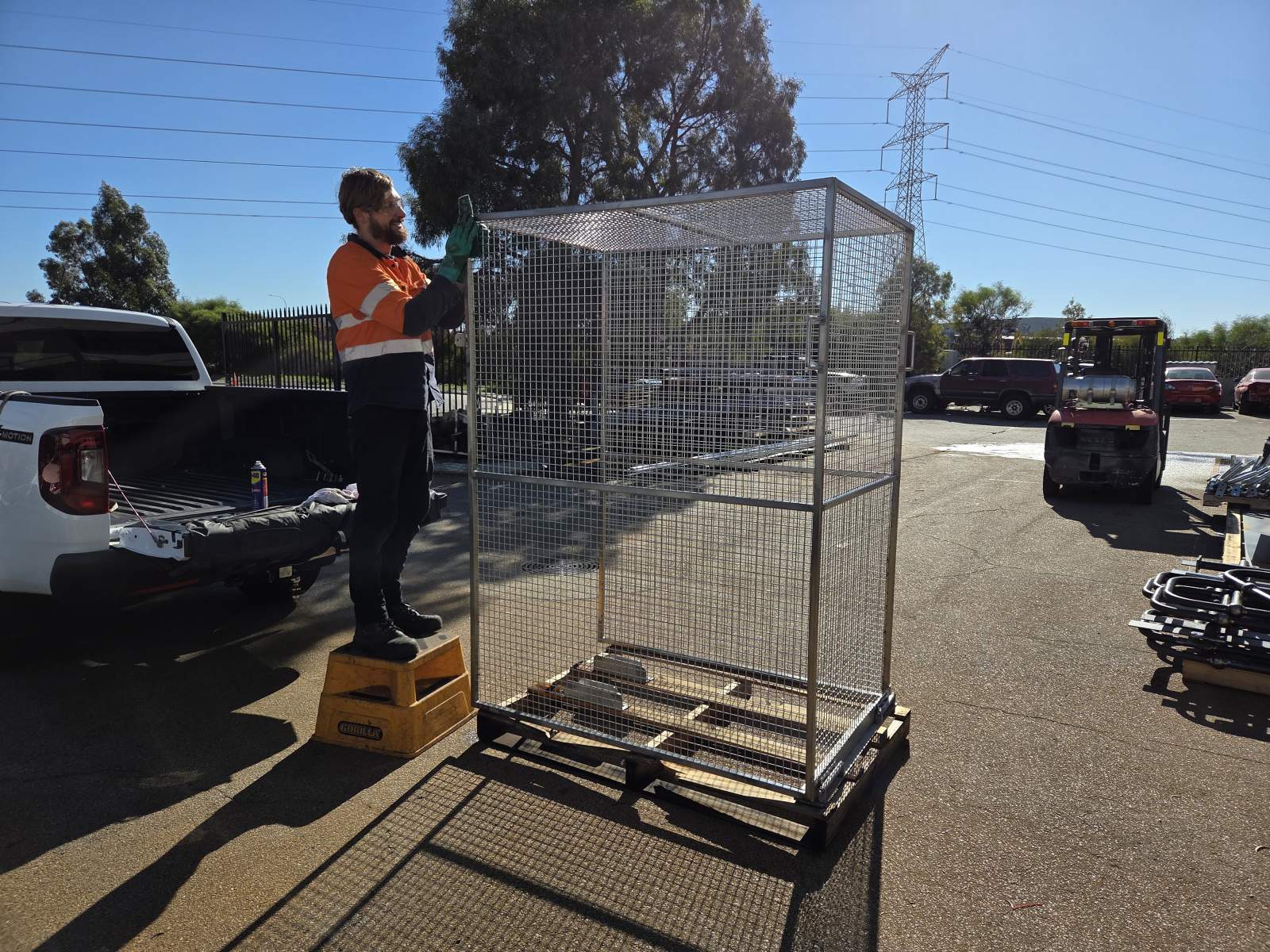

The mesh infill panels were fabricated from 3mm stainless steel wire woven into a 50x50mm mesh pattern. The mesh was welded to the frame members using continuous fillet welds, creating a rigid panel that provides visibility while preventing access to the valve.

The latching mechanism uses stainless steel toggle clamps positioned at three points around the cage perimeter. The clamps secure the top half to the bottom half when closed, preventing accidental opening while allowing quick release for maintenance access.

Technical Specifications

The cage frame is constructed from 316 stainless steel SHS (Square Hollow Section), chosen for its superior corrosion resistance in industrial and process environments. The main frame members are 40x40x3mm, with 30x30x2.5mm bracing members at critical locations.

The mesh infill uses 3mm diameter 316 stainless steel wire woven into a 50x50mm square mesh pattern. The mesh is tensioned and welded to the frame members, creating a rigid panel that provides visibility while preventing access to moving parts.

The hinge system uses heavy-duty stainless steel butt hinges rated for the weight of the opening cage section. The hinges are positioned to allow the top half to lift to 90 degrees, providing full vertical access to the valve.

The latch mechanism uses stainless steel toggle clamps with adjustable strike plates. The clamps are positioned at three points around the cage perimeter to ensure secure closure and even load distribution.

Overall cage dimensions are 800mm long x 600mm wide x 900mm high (closed), providing adequate clearance for the valve and actuator while remaining compact for installation in confined spaces.

Manufacturing Process

Fabrication began with cutting the stainless steel SHS to size using our cold saw capacity. All cuts were deburred to remove sharp edges before welding. The frame members were fit-up on a fabrication table, with joints tack-welded before final welding to control distortion.

The main frame was welded using continuous fillet welds at all joints. Welding was performed using the TIG (GTAW) process with ER316LSi filler wire and argon shielding gas to maintain corrosion resistance. All welds were cleaned and pickled after welding to restore the passive oxide layer.

The mesh panels were fabricated by stretching the woven mesh over the frame members and welding at all contact points. The mesh was tensioned during welding to ensure a flat, rigid panel without sagging or distortion.

The hinge lugs were machined from 20mm stainless steel plate and welded to the frame members. The hinge pins were machined to provide a smooth fit with minimal play. The latch strike plates were welded to the frame, with positions adjusted to ensure proper alignment with the toggle clamps.

After fabrication, the entire cage was cleaned and pickled to remove welding discolouration and restore the corrosion-resistant passive layer. All edges were deburred, and the hinge and latch mechanisms were tested for smooth operation.

Standards Compliance

All welding was performed to AS/NZS 1554.6 standards, with appropriate procedures for stainless steel fabrication. Welders held current qualifications for the TIG process and stainless steel materials, with welder qualification records maintained for traceability.

The design incorporated appropriate safety factors for the expected loads, including the weight of the cage sections and any accidental impact loads. The hinge and latch mechanisms were sized to provide reliable operation over the service life.

Project Benefits

Quick Maintenance Access: The clam shell design allows full valve access in seconds, eliminating the time-consuming process of removing and reinstalling a traditional cage. Maintenance crews can open the cage, perform the required work, and close the cage without disconnecting any piping or removing any components.

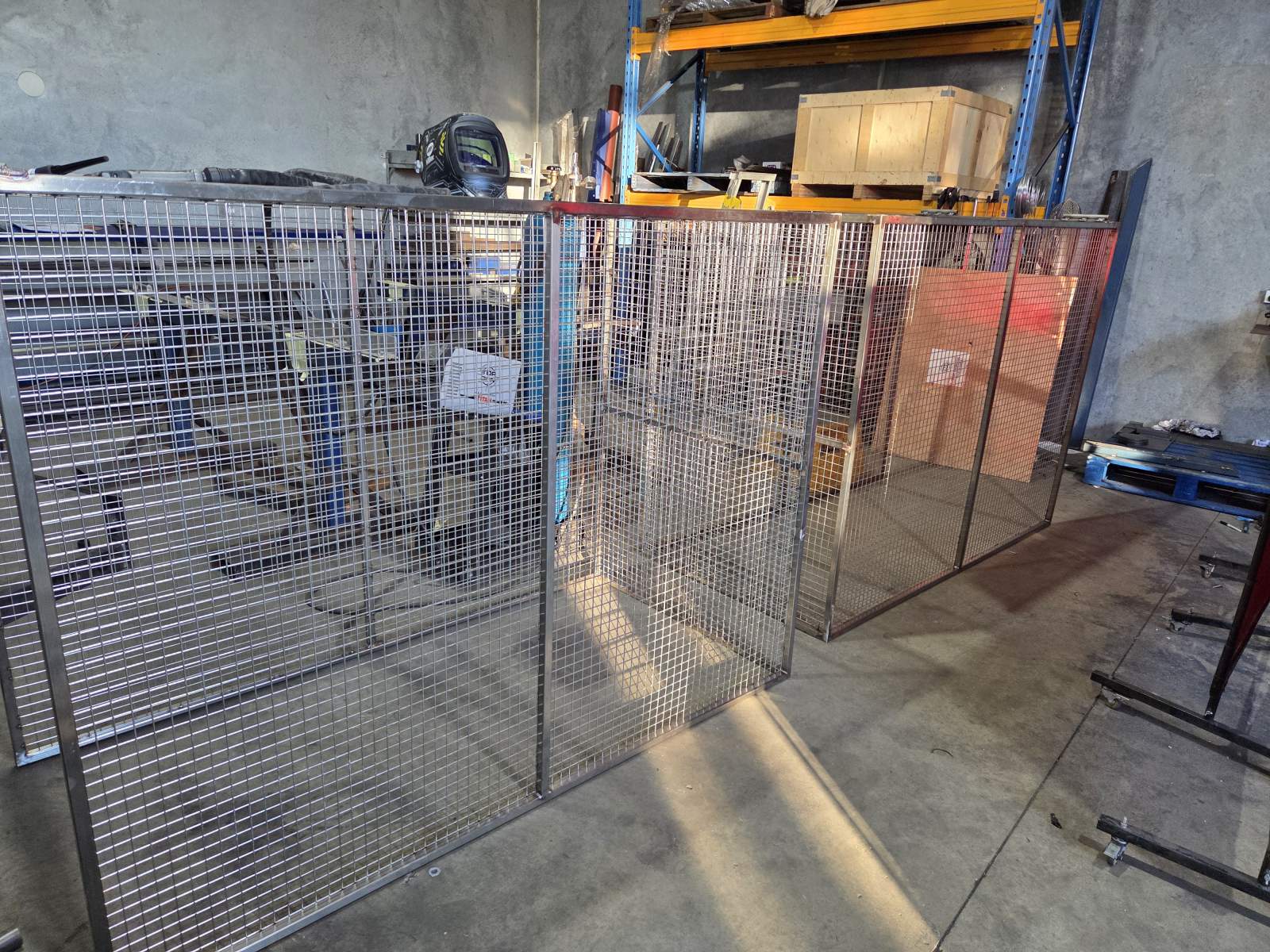

Full Protection When Closed: When closed, the cage provides full enclosure protection against unauthorised access and accidental contact with moving parts. The mesh infill provides visibility of valve position while preventing access.

Corrosion Resistance: 316 stainless steel construction provides excellent corrosion resistance in industrial and process environments, maintaining appearance and structural integrity over the service life without requiring painting or coating maintenance.

Reduced Safety Risk: The secure latching mechanism prevents accidental opening, while the robust construction prevents unauthorised access to the valve. The cage meets safety standards for industrial valve protection.

Durability: Heavy-duty stainless steel construction with appropriate welding standards ensures the cage will withstand the demanding conditions of industrial service, providing long service life with minimal maintenance.

Custom Fit: The cage was designed specifically for the valve dimensions and installation requirements, ensuring proper clearance and access without compromising protection or structural integrity.

Applications

This clam shell valve cage design is suitable for:

• Industrial process valves
• Mining slurry valves
• Chemical processing valves
• Water treatment valves
• Power generation valves
• Oil and gas valves
• Food and beverage processing valves
• Pharmaceutical processing valves

Similar clam shell cages can be fabricated for various valve types and sizes, with custom designs to suit specific valve dimensions, access requirements, and environmental conditions. The clam shell approach can be adapted for horizontal or vertical split configurations depending on the installation requirements.
