Small Custom Compressor Skid

Project Summary

Not every compressed air application requires a large compressor system. Sometimes operations need compact solutions that fit in space-constrained areas while still providing reliable compressed air for tools and equipment. When Pneumatic Engineering needed a small compressor skid measuring just 2 meters by 1.2 meters, they required the same standards compliance and fabrication quality as their larger systems—just scaled to a more compact footprint that would fit where larger skids couldn’t. This project demonstrates how proven design approaches can be adapted to different sizes while maintaining the quality and compliance that critical equipment demands regardless of scale.

This compact skid represents the third variation in our compressor skid work with Pneumatic Engineering throughout 2025. The standard drag skids in February. The extended skids with air dryers in August. Now this space-efficient design in October. Each variation serves different operational requirements while maintaining consistent fabrication standards and quality that customers expect from equipment bearing their name.

Compact Design Engineering

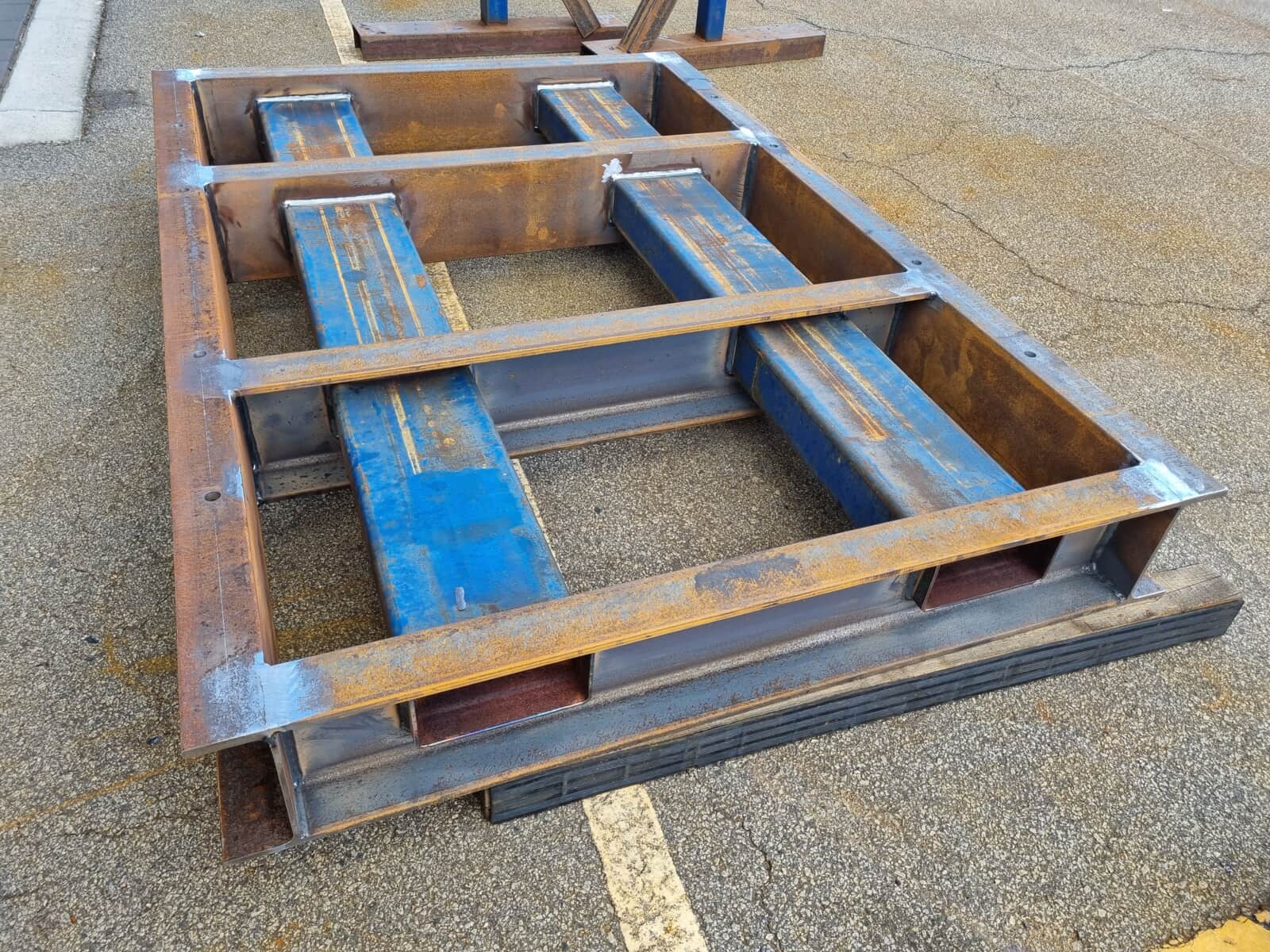

The 2-meter by 1.2-meter footprint makes this skid suitable for installations where space is limited—not just tight, but genuinely constrained. Workshop areas. Equipment rooms. Facility locations with restricted floor space. These environments can accommodate this compact platform where larger skids wouldn’t fit without rearranging entire work areas. The smaller size doesn’t compromise structural integrity—the skid is engineered to provide stable, secure mounting for compressor equipment despite its reduced dimensions that might suggest weakness to casual observers.

We optimized the structural design to provide necessary strength and rigidity within the compact footprint without excessive material. The frame members are sized appropriately for the loads they’ll carry—not oversized, not undersized, but matched to actual requirements. Creating a stable platform that resists vibration and movement during compressor operation. The design maintains the professional engineering approach used in the larger skids while adapting to the space-efficient dimensions that this application requires.

The compressor mounting provisions are custom-designed for the specific equipment this skid will support—not generic mounting holes, but engineered provisions. The mounting points provide secure attachment with appropriate positioning for operation and maintenance access that technicians need. The compact design requires thoughtful layout to ensure all necessary features fit within the limited footprint while remaining functional and accessible without creating maintenance nightmares.

AS/NZS 1554.1 SP Compliance

The skid is fabricated to AS/NZS 1554.1 SP (Structural Purpose) welding standards. Quality requirements. Structural applications. This classification provides the level of quality assurance appropriate for equipment mounting platforms while being practical for the application—not over-specified, not under-specified, but matched to actual needs. The welding procedures, welder qualifications, and inspection requirements ensure consistent quality throughout fabrication without excessive cost.

The SP classification represents structural purpose welding—appropriate for applications where structural integrity is important but the most stringent requirements of higher classifications aren’t necessary for the loads and conditions involved. This practical approach provides the quality needed for reliable compressor mounting while being cost-effective for the application, balancing performance requirements with budget realities.

Forklift Handling Capability

The compact skid includes forklift handling provisions. Easy positioning. Easy relocation. The forklift pockets are positioned and reinforced appropriately for the skid’s size and weight without over-engineering. This handling capability makes the skid practical for installation, maintenance access, and potential relocation if facility layouts change—and in industrial facilities, layouts change more often than you’d expect.

The compact size and forklift handling make this skid particularly practical for facilities where equipment needs to be positioned precisely or relocated periodically without major disruption. The skid can be moved efficiently without requiring specialized handling equipment or extensive labor that would make repositioning impractical. Just a forklift and an operator—standard equipment at most facilities.

Scalable Design Approach

This small compressor skid demonstrates our capability to scale designs appropriately for different applications without losing quality. The engineering approach that works for large underground mining skids can be adapted to compact workshop installations, maintaining quality and standards compliance while meeting different operational requirements that vary dramatically. The consistent fabrication standards across all sizes ensure reliable performance regardless of scale—small doesn’t mean inferior.

The compact 2-meter by 1.2-meter skid we delivered provides Pneumatic Engineering with a space-efficient mounting platform that maintains the quality and standards compliance of their larger systems without compromise. The AS/NZS 1554.1 SP welding, custom design, and forklift handling capability create a practical solution for compressed air applications where space is limited but quality requirements remain high and failures would be expensive.
